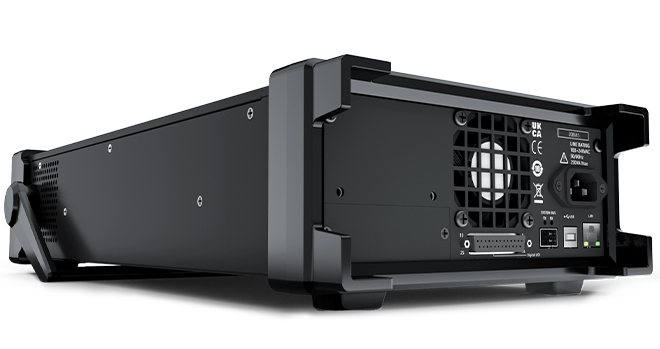

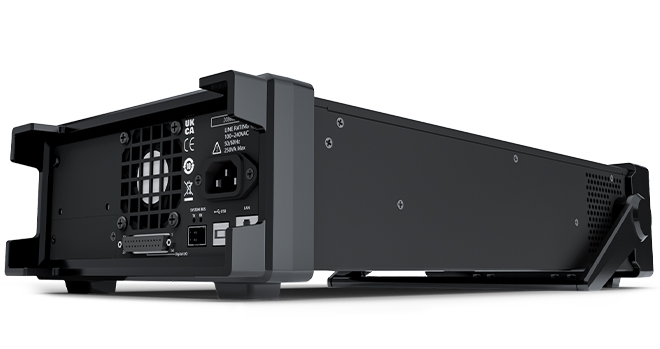

IT2800 Graphical Source Measure Unit
The IT2800 Series are compact and cost-effective bench-top Source Measure Units (SMUs) with the capability to source and measure both voltage and current. The IT2800 Series combine the capabilities of a voltage source, a current source, a voltage meter, a current meter and an ohmmeter (along with the capability to switch easily between these various functions).This ensures the independent measurement of IV characteristic in 4-quadrant. With a current range of 10fA to 10A and a voltage range of100nV to 1000V, the IT2800 series SMU has capabilities that allow it to perform more than just simple DC and pulsed measurements to prevent errors inmeasurement results due to the device's own heating. Excellent Front Panel GUI with 5 inch touch display supports various view modes, to help engineers significantly improve the efficiency of testing. The IT2800 Series is suitable for a variety of test applications: discrete semiconductor devices, passive devices, transient suppression devices, laser diodes, TVS, varistors, etc.
Find a product
Model
Voltage
Current
Power
Resolution
Accuracy
Interface
Size
IT2806
±200V
±3A DC, ±10A Pulse
±20W
100nV/10fA(Source)
100nV/10fA(Measure)
±0.015%+300uV(200mV range) /±0.06%+100pA (100nA range)
USB/LAN/Digital IO, optional GPIB
1/2 2U
inquiry
IT2805
±200V
±1.5A
±20W
1uV/100fA(Source)
100nV/10fA (Measure)
±0.015%+300uV(200mV range) / ±0.06%+100pA (100nA range)
USB/LAN/Digital IO, optional GPIB
1/2 2U
inquiry
IT2801
±1000V
±1A
±20W
100nV/1pA(Source)
100nV/1pA(Measure)
0.015%+300uV(200mV range) 0.025%+300pA (1uA range)
USB/LAN/Digital IO, optional GPIB
1/2 2U
inquiry
IT2801R
±1000V
±1A
±20W
100nV/1pA(Source)
100nV/1pA(Measure)
0.015%+300uV(200mV range) 0.025%+300pA (1uA range)
USB/LAN/Digital IO, standard triaxial Connector
1/2 2U
inquiry
IT2805R
±200V
±1.5A
±20W
1uV/100fA(Source)
100nV/10fA (Measure)
±0.015%+300uV(200mV range) / ±0.06%+100pA (100nA range)
USB/LAN/Digital IO, standard triaxial Connector
1/2 2U
inquiry
IT2806R
±200V
±3A DC, ±10A Pulse
±20W
100nV/10fA(Source)
100nV/10fA(Measure)
±0.015%+300uV(200mV range) /±0.06%+100pA (100nA range)
USB/LAN/Digital IO, standard triaxial Connector
1/2 2U
inquiry
Show all
* The above specifications are subject to change without prior notice.
Product Features

 5 inch touch display supports both graphical and numerical view modes.
 Combing the capabilities of six devices in one: Voltage Source, Current Source, 6 ½Digital Multimeter (DCV,DCI, ohms), Battery Simulator, electronic load and Pulse Generator
 Integrating 4-quadrant sourcing & measuring capabilities, and supporting Two-wire& Four-wire measurement
 Resolution up to 10fA/100nV, sampling rate up to 10us
 Three graphic display modes: Graph View, Scope View and Record View

 Multi-channel and simultaneous operation design, with parallel testing capability
 Built-in resistance, power, and Math measurement features
 Front USB port used for data storage, screen capture, or test configuration import

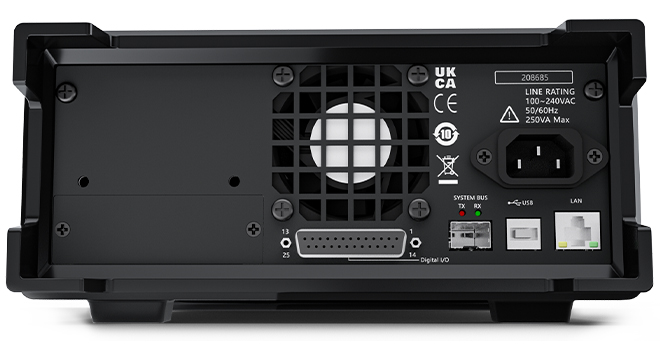

 Built-in Digital IO/USB/LAN communication interface, optional GPIB

Functions and Advantages

Six in one high precision SMU, reduce yourtest cost

Performing IV measurements with conventional instruments such as voltage/current sources, pulse generator, high precision voltage/currentmeters, etc. is complicated and costly. It takes up limited test bench space and requires engineers control and synchronize programming of multiple devices to perform an accurate measurement.
The IT2800 series SMU provides engineers with an economical and efficient solution. It integrates different source and measurement capabilities into one compact form factor of 1/2 2U size, which can accurately source and measure voltage and current. It combine the capabilities of six devices including: 4-quadrant voltage source, current source, 6 ½ digital multimeter, pulse generator, battery simulator and electronic load.

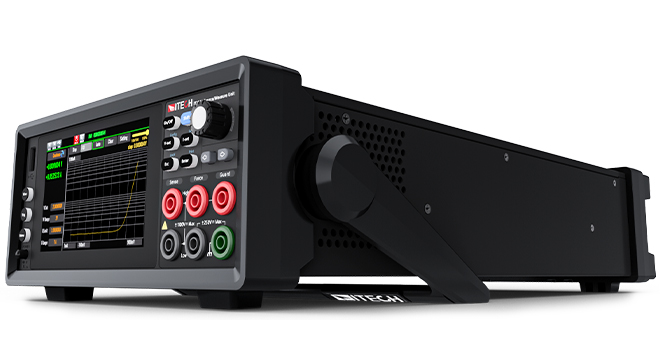

Intuitive graphical display, fast accessto product features

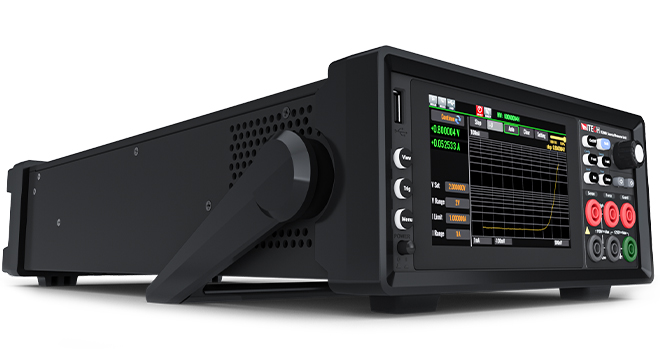

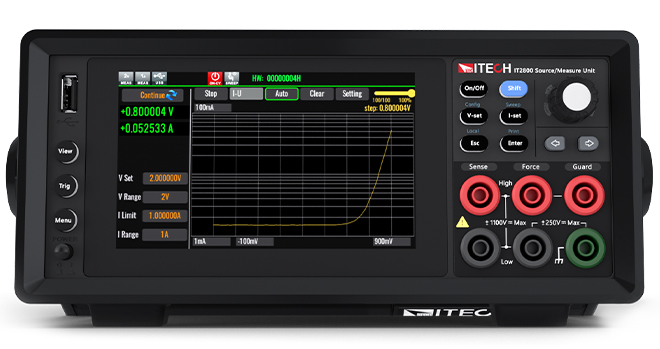

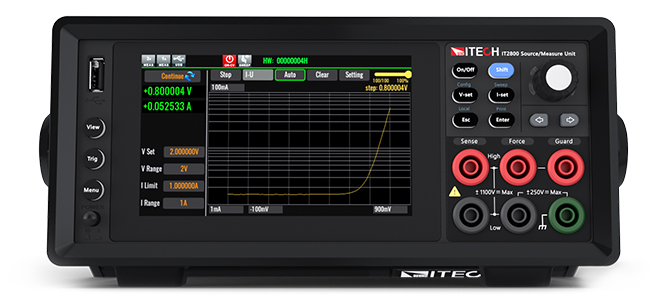

The IT2800's front panel has many features that improve the speed of interactive use, user friendliness and ease of operation. These include a 5 inch color LCD display, a USB2.0 memory I/O port, a rotating navigation button, a trigger button,function keys and popular banana jack. The USB2.0 memory port supports easy data storing, test configuration file import and system upgrade. The IT2800 Series supports both graphical and numerical test results view modes. The intuitive graph view, scope view and record view greatly improves the productivity of bench-top tests and IV characteristic analysis.

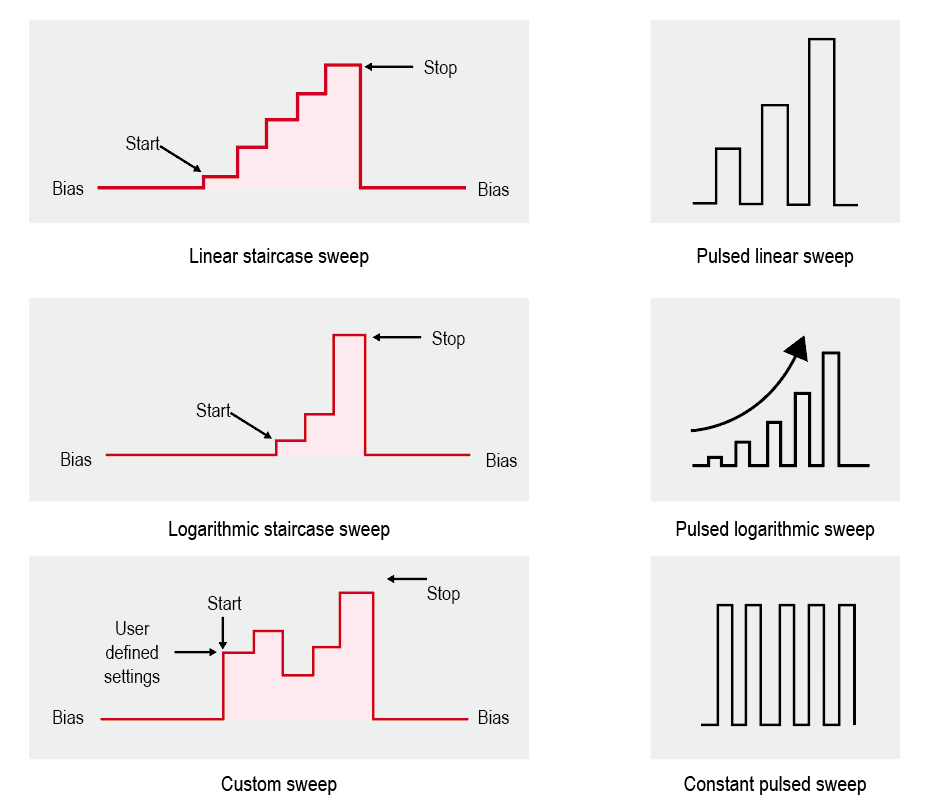

Standard and LIST sweep capabilities

IT2800 Series features standard and LIST sweep capabilities. Under standard sweep mode, it supports parameters such as linear and logarithmic modes, single and double sweep functions and constant and pulsed sweep operation. List sweep functionscan efficiently perform arbitrary waveform output which is useful when characterizing devices where the test response varies greatly depending uponthe applied voltage or current. The user can use Excel import or panel edit to generate sweep curves of any shape with up to 99,999 data points can be import, which is an ideal choice for testing U-I and I-U features.



Battery simulatorfunction

Thanks to the four-quadrant operating characteristics of SMU, the IT2800 Series can not only be used as voltage source, current source, 6 ½ Digital Multimeter,but also built-in professional battery simulator

function to helpengineers better study the impact of battery characteristics on DUT powerconsumption and performance reliability. You can quickly generate batterycurves by customizing (SOC-VOC-R) or setting conventional parameters. Inaddition, the initial SOC state of the battery can be specifiedarbitrarily, without waiting for charging or discharging like using a realbattery, which greatly improves the efficiency of R&D and productiontesting.

Options & Accessories
  • IT-E9005(Optional)
    ITECH Warranty up to 5 years
  • IT-E9003(Optional)
    ITECH Warranty up to 3 years
  • IT-E801A(200V model option)
    Banana to Triax Adapter

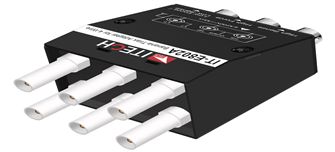

  • IT-E802A(1000V model option)
    Banana to Triax Adapter
  • IT-E168 (Optional)
    Optical fiber module and optic...
  • IT-E176 (Optional)
    GPIB communication card
  • IT-E601 (200V model option)
    Black straight plug- probe cro...
  • IT-E601H (1000V model option)
    Black straight plug- probe cro...

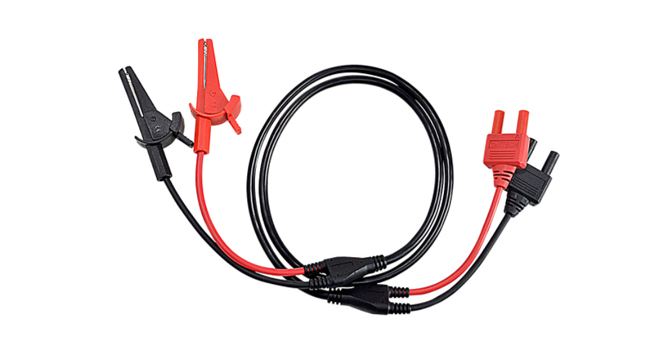

  • IT-E602 (200V model option)
    Black Straight Plug - Alligato...
  • IT-E602H (1000V model option)
    Black Straight Plug - Alligato...

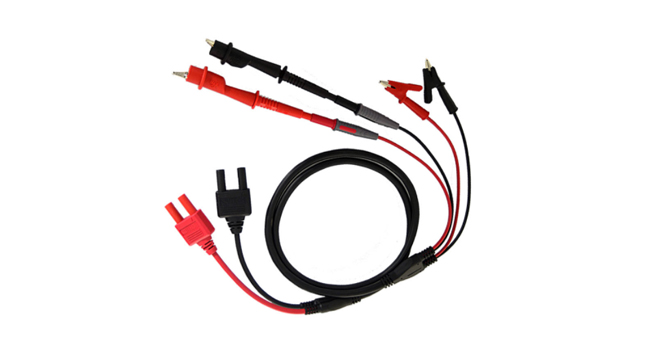

  • IT-E603 (200V model option)
    Black straight plug- probe con...
  • IT-E603H (1000V model option)
    Black straight plug- probe con...
  • IT-E604 (200V model option)
    Black straight plug-universal ...
  • IT-E604H (1000V model option)
    Black straight plug-universal ...

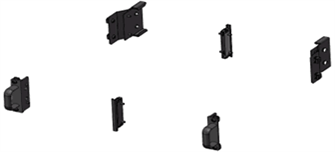

  • IT-E158A (IT cabinet option)
    Suitable for two parallel inst...

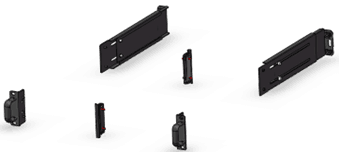

  • IT-E158B (IT cabinet option)
    Suitable for two parallel inst...

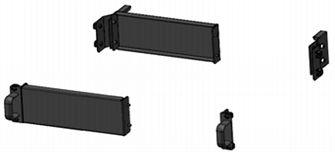

  • IT-E158C (IT cabinet option)
    Suitable for single installati...

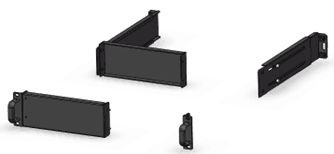

  • IT-E158D (IT cabinet option)
    Suitable for single installati...
  • AC power cord (Standard)
    AC power cord
  • USB straight wire (Standard)
    USB communication cable

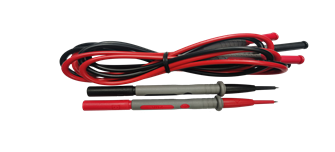

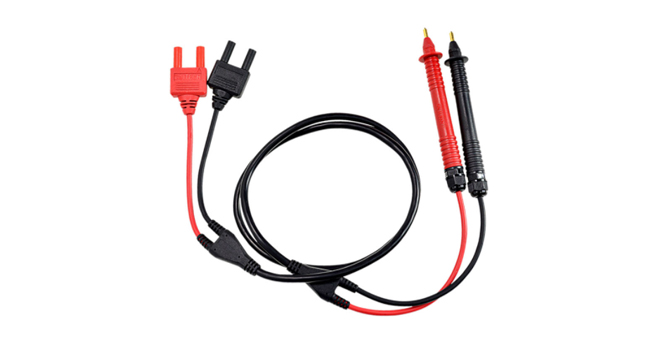

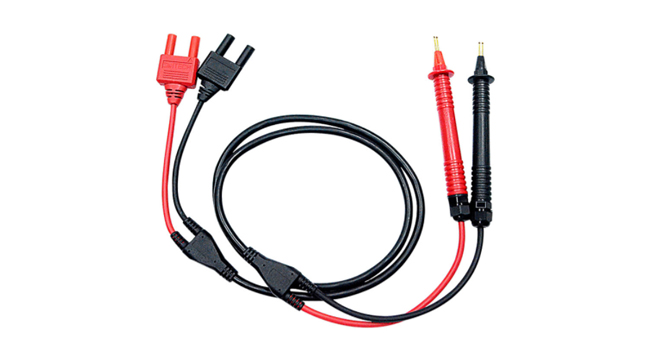

  • Test line (Standard)
    Two-wire red and black test ca...
  • IT-E801C-1.5 (200V model optio...
    Low leakage three-core coaxial...

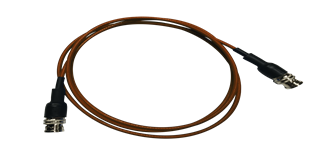

  • IT-E802C-1.5 (1000V model opti...
    Low leakage three-core coaxial...
