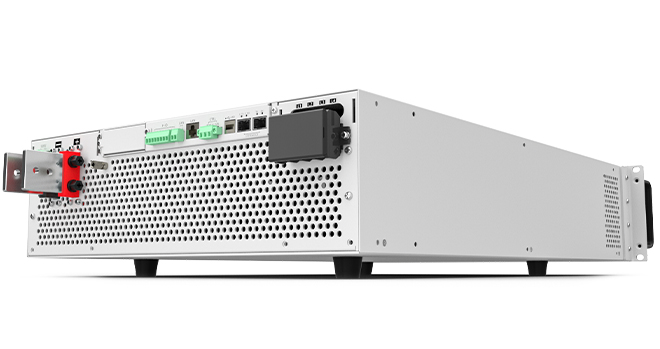

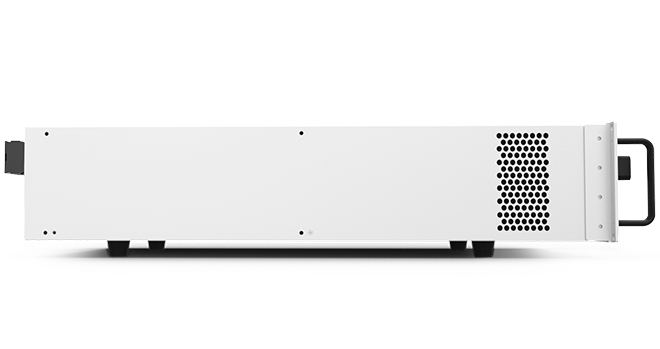

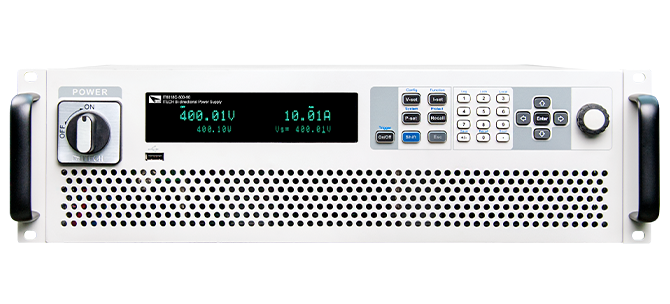

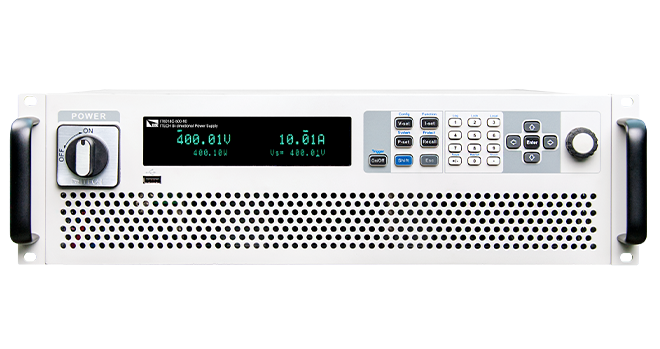

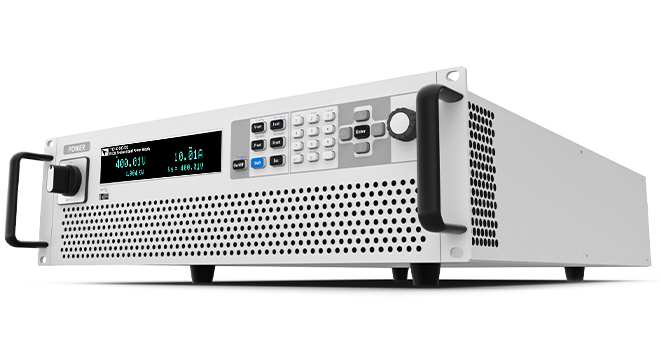

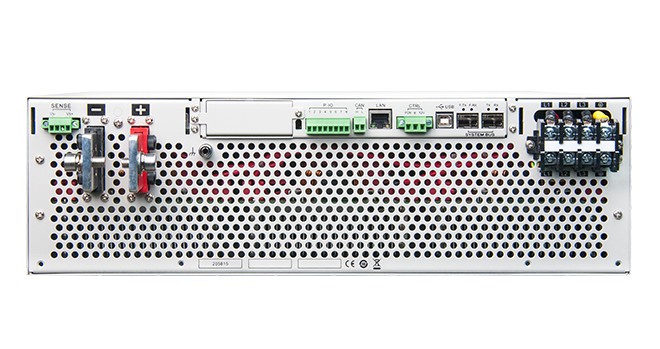

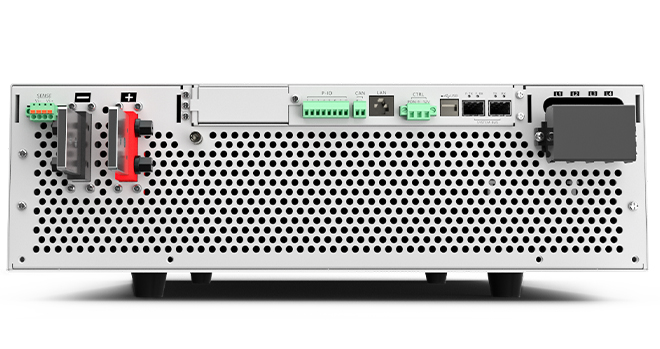

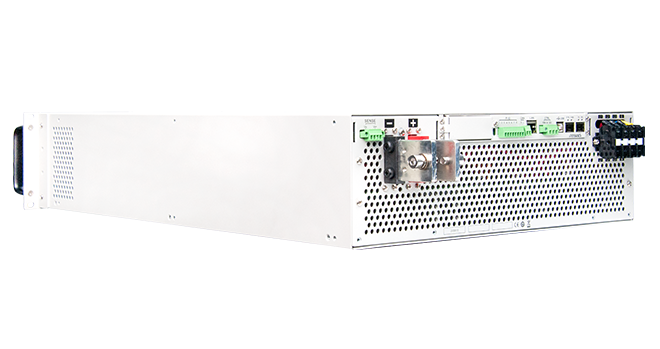

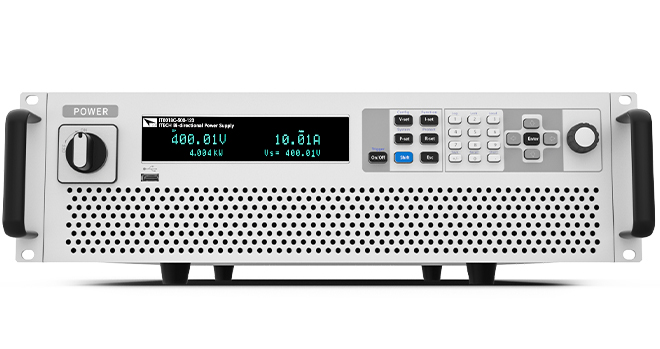

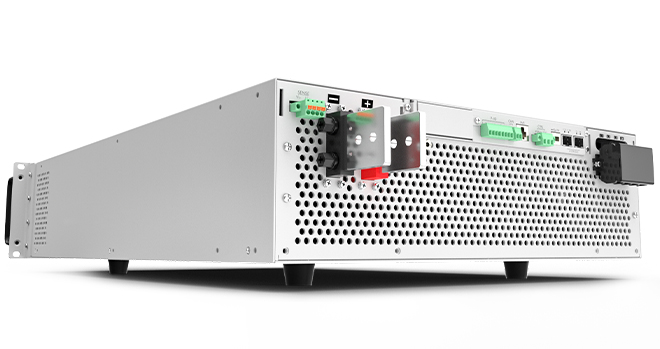

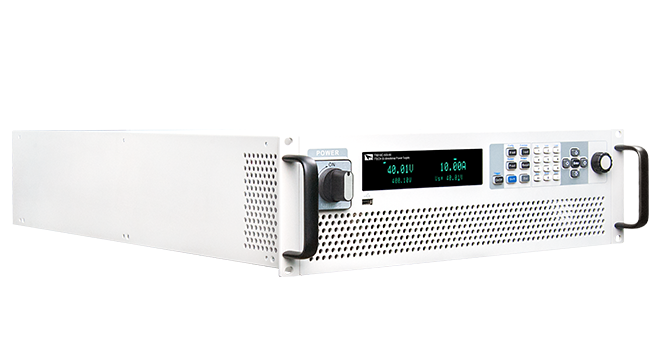

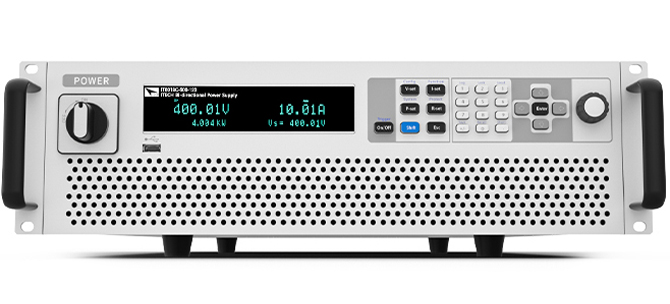

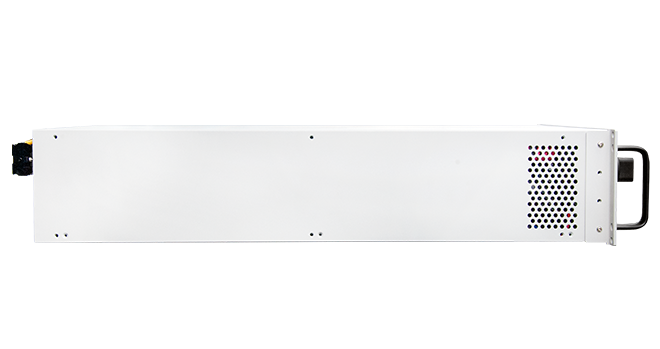

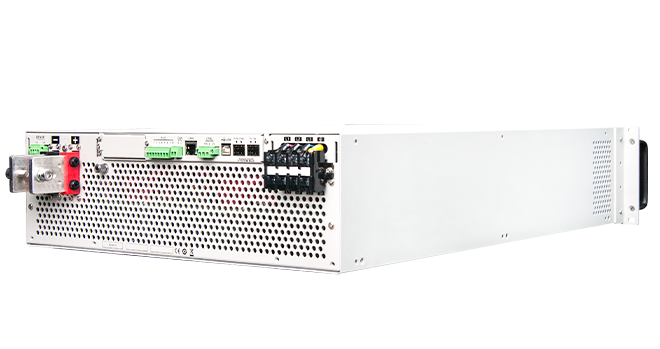

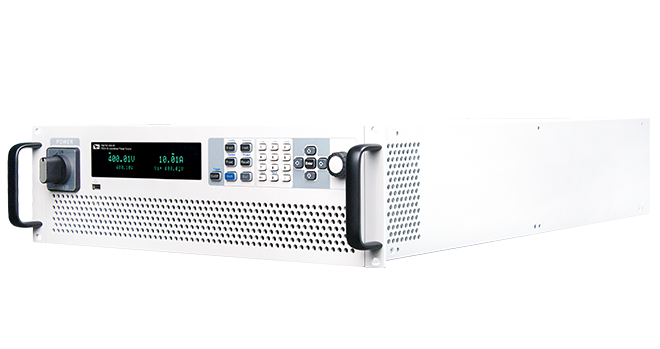

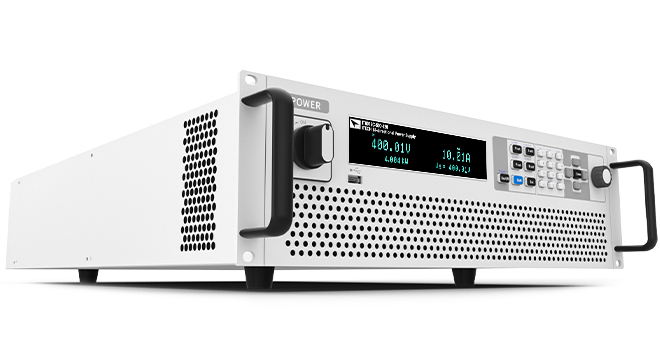

IT6000C Bidirectional Programmable DC Power Supply

The bi-directional programmable DC power supply of IT6000C series combines two devices in one: a power supply (source) and an electronic load (sink) with energy recovery. Based on these two functions, IT6000C offers the functionalityof two-quadrant operation. The regenerative capability enables the energyconsumed to be put back onto the grid cleanly, saving costs from energyconsumption and cooling, while not interfering with the grid. IT6000C seriesprovide 7 voltage grades, max. output voltage up to 2250V, support master-slaveparalleling with averaging current distribution, max. output power up to1.152MW. Built-in waveform generator supports generating arbitrary waveforms,and import LIST files for waveforms via front panel USB port. IT6000C is thecombination of high reliability, high efficient setting, safe and multiplemeasurement functions. IT6000C is a family of bi-directional, regenerativepower system with excellent performance, extensively used in aspects of highpower battery, automotive electronics, green energy, high speed testing etc.


Find a product
Model
Voltage
Current
Power
Resolving
Accuracy
Interface
Size
IT6005C-80-150
80V
150A
5kW
0.001V/0.001A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces
3U
inquiry
IT6015C-80-450
80V
450A
15kW
0.001V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces
3U
inquiry
IT6010C-80-300
80V
300A
10kW
0.001V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces
3U
inquiry
IT6030C-80-900
80V
900A
30kW
0.001V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces
6U
inquiry
IT6060C-80-1800
80V
1800A
60kW
0.001V/0.1A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces
15U
inquiry
IT6045C-80-1350
80V
1350A
45kW
0.001V/0.1A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces
15U
inquiry
IT6090C-80-2040
80V
2040A
90kW
0.001V/0.1A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces
27U
inquiry
IT6075C-80-2040
80V
2040A
75kW
0.001V/0.1A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces
27U
inquiry
IT6120C-80-2040
80V
2040A
120kW
0.001V/0.1A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces
27U
inquiry
IT6105C-80-2040
80V
2040A
105kW
0.001V/0.1A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces
27U
inquiry
IT6012C-500-80
500V
80A
12kW
0.01V/0.001A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces
3U
inquiry
IT6006C-500-40
500V
40A
6kW
0.01V/0.001A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces
3U
inquiry
IT6036C-500-240
500V
240A
36kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces
6U
inquiry
IT6018C-500-120
500V
120A
18kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces
3U
inquiry
IT6072C-500-480
500V
480A
72kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces
15U
inquiry
IT6054C-500-360
500V
360A
54kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces
15U
inquiry
IT6108C-500-720
500V
720A
108kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces
27U
inquiry
IT6090C-500-600
500V
600A
90kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces
27U
inquiry
IT6144C-500-960
500V
960A
144kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces
27U
inquiry
IT6126C-500-840
500V
840A
126kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces
27U
inquiry
IT6012C-800-50
800V
50A
12kW
0.01V/0.001A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces
3U
inquiry
IT6006C-800-25
800V
25A
6kW
0.01V/0.001A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces
3U
inquiry
IT6036C-800-150
800V
150A
36kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces
6U
inquiry
IT6018C-800-75
800V
75A
18kW
0.01V/0.001A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces
3U
inquiry
IT6072C-800-300
800V
300A
72kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces
15U
inquiry
IT6054C-800-225
800V
225A
54kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces
15U
inquiry
IT6108C-800-450
800V
450A
108kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces
27U
inquiry
IT6090C-800-375
800V
375A
90kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces
27U
inquiry
IT6144C-800-600
800V
600A
144kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces
27U
inquiry
IT6126C-800-525
800V
525A
126kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces
27U
inquiry
IT6036C-1500-80
1500V
80A
36kW
0.1V/0.001A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces
6U
inquiry
IT6018C-1500-40
1500V
40A
18kW
0.1V/0.001A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces
3U
inquiry
IT6054C-1500-120
1500V
120A
54kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces
15U
inquiry
IT6090C-1500-200
1500V
200A
90kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces
27U
inquiry
IT6072C-1500-160
1500V
160A
72kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces
15U
inquiry
IT6126C-1500-280
1500V
280A
126kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces
27U
inquiry
IT6108C-1500-240
1500V
240A
108kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces
27U
inquiry
IT6018C-2250-25
2250V
25A
18kW
0.1V/0.001A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces
3U
inquiry
IT6144C-1500-320
1500V
320A
144kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces
27U
inquiry
IT6054C-2250-75
2250V
75A
54kW
0.1V/0.001A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces
15U
inquiry
IT6036C-2250-50
2250V
50A
36kW
0.1V/0.001A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces
6U
inquiry
IT6090C-2250-125
2250V
150A
90kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces
27U
inquiry
IT6072C-2250-100
2250V
125A
72kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces
15U
inquiry
IT6126C-2250-175
2250V
200A
126kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces
27U
inquiry
IT6108C-2250-150
2250V
175A
108kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces
27U
inquiry
IT6144C-2250-200
2250V
225A
144kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces
27U
inquiry
Show all
* The above specifications are subject to change without prior notice.
Product Features

Features

 Bi-directional – power supply and electronic load in one
 Stand-alone max. output power 144kW, expandable up to 1.152 MW by paralleling
 Voltage range: 0 to 2250V
 Current range: 0 to 2040A
 High power density up to 18kW in compact 3U rack space
 Bi-directional power transfer, seamless switch between sourcing and sinking
 High regenerative efficiency up to 95%
 Standard Built-in USB/CAN/LAN/digital IO communication interface, optional GPIB/analog & RS232
 Full protections: support OVP, ±OCP, ±OPP, OTP, power down protection, anti-islanding protection
 Support control loop priority mode setting , different loop speed can be set
 Built-in voltage curves comply with DIN 40839, ISO-16750-2/ISO21848 automotive standards
 Support photovoltaic I-V curves simulation function
 Built-in function generator, support arbitrary-waveform generating
 Adjustable output impedance


Application


Functions and Advantages

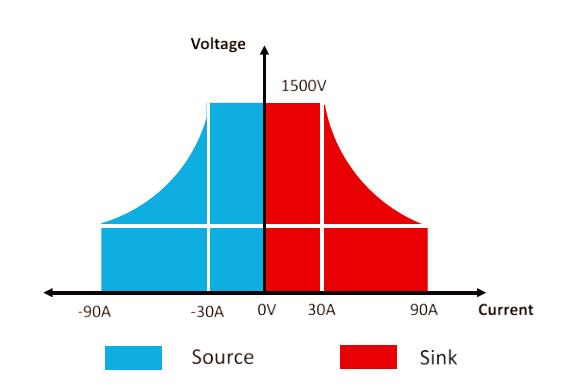

Bi-directional energy, seamless transfer

The IT6000C Series combines bi-directional power supply and regenerative load function in one. Unlike traditional power supplies and E-loads, for which there will be short transitions and inconsistencies in the middle of positive and negative current switching, IT6000C is a standard high-speed bidirectional power supply, enables high-speed source and sink current fast and continuous seamless switching, effectively avoiding voltage or current overshoot, and can be widely used in Energy storage device test, like batteries, cell packaging equipment and battery protection board testing .



High energy regenerative efficiency

The IT6000C series has a unique energy regenerative function that can regenerate electrical energy and then directly use it in the plant instead of consuming it in the form of heat. The regenerative efficiency can reach up to 95%, which not only will greatly reduce the user's electricity cost, but also avoid the using of air conditioning or expensive cooling systems.


Application for solar array simulation

IT6000C configured with optional ITECH SAS1000 Solar Array Simulation Software, users can easily use the software to output, measure, display the MPP tracking status of photovoltaic inverter in real time simulation and record value. Built-in EN50530 / Sandia NB/T32004 / C GC/GF004 /CGC/GF035 standard testing procedures, it is convenient for users to test the static and dynamic MPPT performance of PV inverters and generate reports. Solar simulation power supply also provides the shadow and table mode operation, the user can enter up to 4096 points array to edit any shielded IV curve to achieve dynamic shadow effect simulation and also can store 100 I-V curves under different irradiation and temperature to test the long-term maximum power tracking performance of photovoltaic inverters under different climatic conditions.
