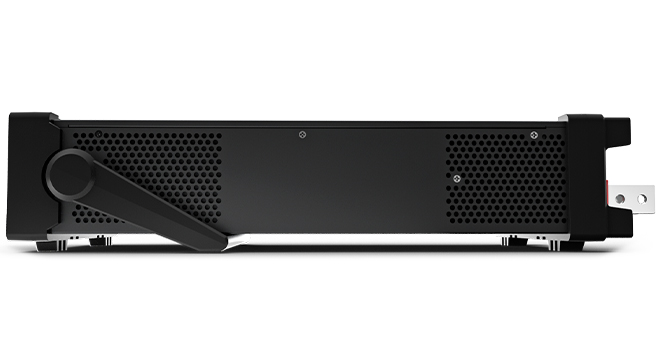

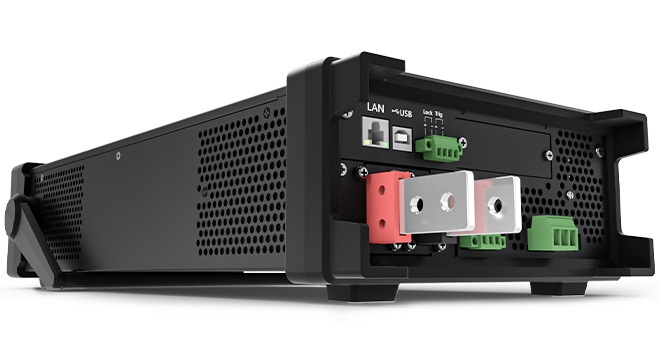

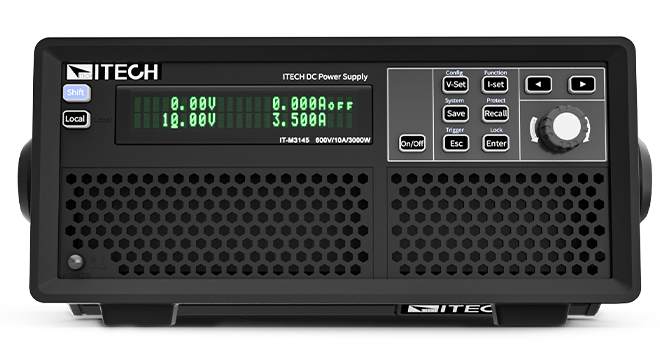

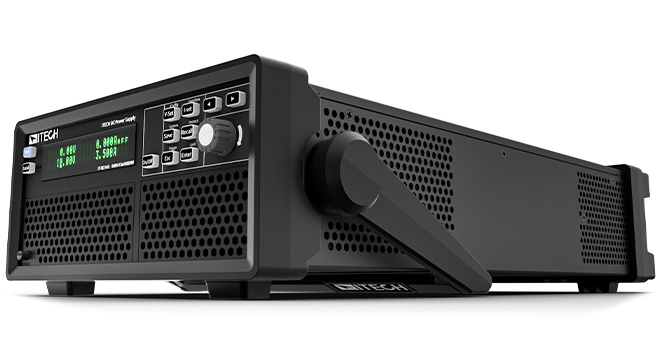

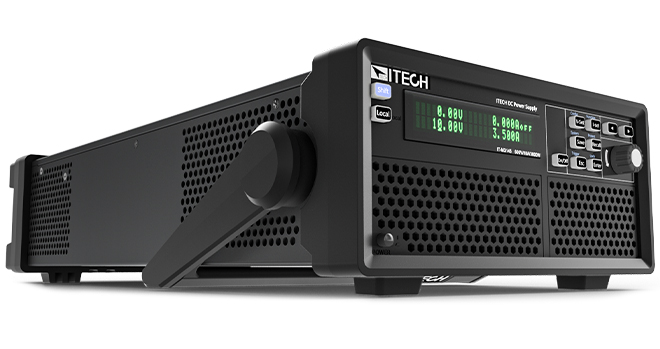

IT-M3140 Programmable DC Power Supply
IT-M3140 Programmable DC Power Supply is specially designed for testing, production, R&D lab and ATE integration. It is only 2U half rack, but can output power up to 1850W and 3000W, and voltage output from 30V to 1200V. It has three output modes of constant voltage, constant current and constant power. Automatic wide-range output enables it to achieve a wider output voltage and current range at full power output, meeting a wider range of testing requirements and greatly saving equipment purchase costs. Not only that, IT-M3140 is a DC power supply integrating high stability, fast response (<1ms), high-level protection functions and LIST programmable functions. This series is equipped with a standard USB/LAN interface, and can be used with ITECH’s free PV3140 software to easily realize remote control and data storage, and is easy to integrate. IT-M3140 can be widely used in semiconductor device ATE, burn-in integration, testing and certification, power module and automotive electronics and other fields.
Find a product
Model
Voltage
Current
Power
Resolution
Accuracy
Interface
Size
IT-M3141
30V
150A
3000W
1mV/10mA
U:≤0.03% + 0.02%F.S / I:≤0.1% + 0.1%F.S.
Standard USB/LAN, optional GPIB/ external analog
1/2 2U
inquiry
IT-M3142
80V
80A
3000W
10mV/10mA
U:≤0.03% + 0.02%F.S / I:≤0.1% + 0.1%F.S.
Standard USB/LAN, optional GPIB/ external analog
1/2 2U
inquiry
IT-M3143
150V
40A
3000W
100mV/10mA
U:≤0.03% + 0.02%F.S / I:≤0.1% + 0.1%F.S.
Standard USB/LAN, optional GPIB/ external analog
1/2 2U
inquiry
IT-M3144
300V
20A
3000W
10mV/1mA
U:≤0.03% + 0.02%F.S / I:≤0.1% + 0.1%F.S.
Standard USB/LAN, optional GPIB/ external analog
1/2 2U
inquiry
IT-M3145
600V
10A
3000W
10mV/1mA
U:≤0.03% + 0.02%F.S / I:≤0.1% + 0.1%F.S.
Standard USB/LAN, optional GPIB/ external analog
1/2 2U
inquiry
IT-M3146
1000V
6A
3000W
100mV/1mA
U:≤0.03% + 0.02%F.S / I:≤0.1% + 0.1%F.S.
Standard USB/LAN, optional GPIB/ external analog
1/2 2U
inquiry
IT-M3147
1200V
5A
3000W
100mV/1mA
U:≤0.03% + 0.02%F.S / I:≤0.1% + 0.1%F.S.
Standard USB/LAN, optional GPIB/ external analog
1/2 2U
inquiry
IT-M3131E
30V
150A
1850W
1mV/10mA
U:≤0.03% + 0.02%F.S / I:≤0.1% + 0.1%F.S.
Standard USB/LAN, optional GPIB/ external analog
1/2 2U
inquiry
IT-M3132E
80V
80A
1850W
10mV/10mA
U:≤0.03% + 0.02%F.S / I:≤0.1% + 0.1%F.S.
Standard USB/LAN, optional GPIB/ external analog
1/2 2U
inquiry
IT-M3133E
150V
40A
1850W
10mV/10mA
U:≤0.03% + 0.02%F.S / I:≤0.1% + 0.1%F.S.
Standard USB/LAN, optional GPIB/ external analog
1/2 2U
inquiry
IT-M3134E
300V
20A
1850W
10mV/1mA
U:≤0.03% + 0.02%F.S / I:≤0.1% + 0.1%F.S.
Standard USB/LAN, optional GPIB/ external analog
1/2 2U
inquiry
IT-M3135E
600V
10A
1850W
10mV/1mA
U:≤0.03% + 0.02%F.S / I:≤0.1% + 0.1%F.S.
Standard USB/LAN, optional GPIB/ external analog
1/2 2U
inquiry
IT-M3136E
1000V
6A
1850W
100mV/1mA
U:≤0.03% + 0.02%F.S / I:≤0.1% + 0.1%F.S.
Standard USB/LAN, optional GPIB/ external analog
1/2 2U
inquiry
IT-M3137E
1200V
5A
1850W
100mV/1mA
U:≤0.03% + 0.02%F.S / I:≤0.1% + 0.1%F.S.
Standard USB/LAN, optional GPIB/ external analog
1/2 2U
inquiry
Show all
* The above specifications are subject to change without prior notice.
Product Features
Only 2U half rack, Powerrange: 1850W/3000W
Voltageand current range: 30V-1200V, 150A
Three output modes: CV/CC/CP
CC/CV priority to avoid current overshoot
Fast dynamic response: <1ms
LIST mode simulates various power supply disturbance waveforms,rising and falling slope are adjustable
Fold back,UVP/OVP, UCP/OCP,OPP,OTP, inhibit protection,more secure and reliable
The Sense protection circuit combined with software and hardware can effectively detect Sense reverse connection and missing connection, and protect the DUT

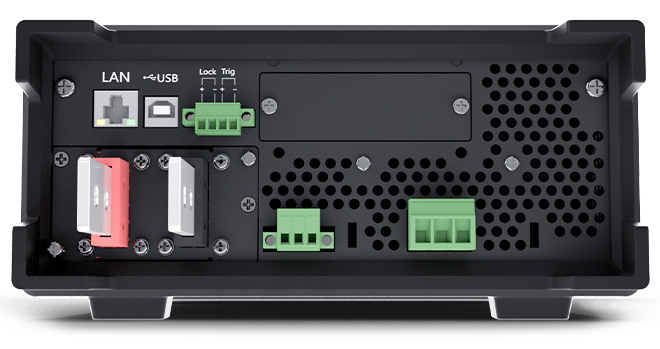

Standard USB/LAN, optional RS232 & analog, GPIB, easy to integrate
Functions and Advantages

LIST mode simulates various power supply disturbance waveforms

IT-M3140 series provides LIST programming mode. In this mode, users can generate arbitrary DC voltage disturbance waveforms, such as instantaneous voltage drop or voltage rise slowly, by setting parameters such as working steps (max100 steps), output voltage/current per step, single step duration (0.001s-3600s), rising and falling slopes, etc., to fully verify the anti-interference performance of DC loads. It is suitable for testing products such as DC-DC power modules, motor drivers, and battery-powered household appliances.

CC/CV priority function to effectively suppress current overshoot

The IT-M3140 series has a CC/CV priority function to help users solve a variety of demanding problems in long-term test applications. By changing the CC/CV priority and loop speed settings, users can obtain voltage high speed mode or current no overshoot mode, making the test more flexible, since it is suitable for current-sensitive laser testing, and can also meet the application scenario of rapid voltage dips.

9 protection modes to enhance test security

To further enhance the reliability and safety of product testing, the IT-M3140 series offers nine protection modes. In the traditional over / under voltage, over / under current, over power protection on the basis of the additional Fold back, Inhibit and Sense reverse connection protection function, so that not only can effectively reduce the power mode switching instantaneous overshoot, while avoiding the sense wrong connection or leakage caused by test abnormalities. With the Inhibit output ban / interlock function, making the test more secure and reliable.

Options & Accessories

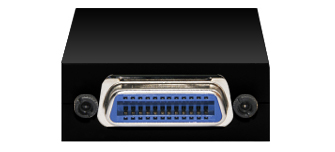

  • IT-E176 (Optional)
    GPIB communication card

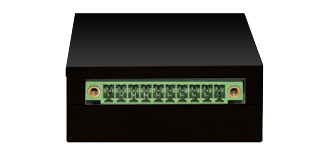

  • IT-E177 (Optional)
    RS232/Analog communication car...

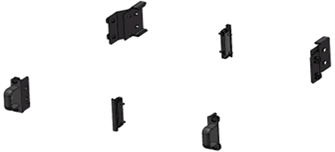

  • IT-E158A (IT cabinet option)
    Suitable for two parallel inst...

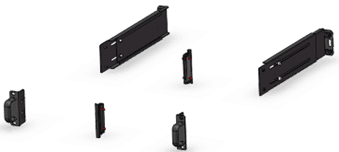

  • IT-E158B (IT cabinet option)
    Suitable for two parallel inst...

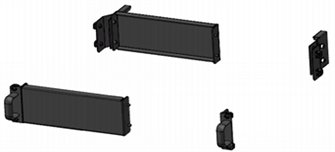

  • IT-E158C (IT cabinet option)
    Suitable for single installati...

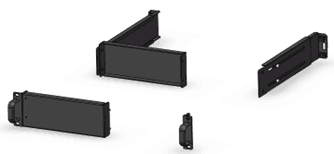

  • IT-E158D (IT cabinet option)
    Suitable for single installati...
