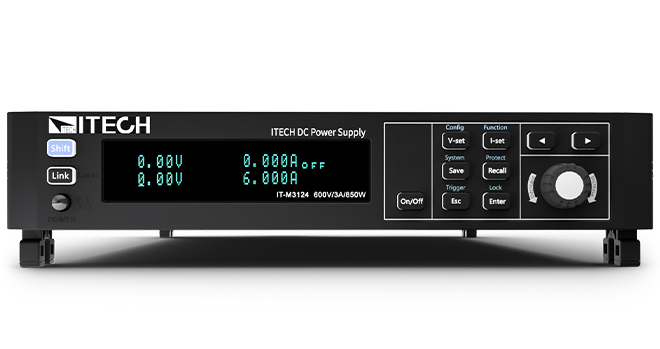

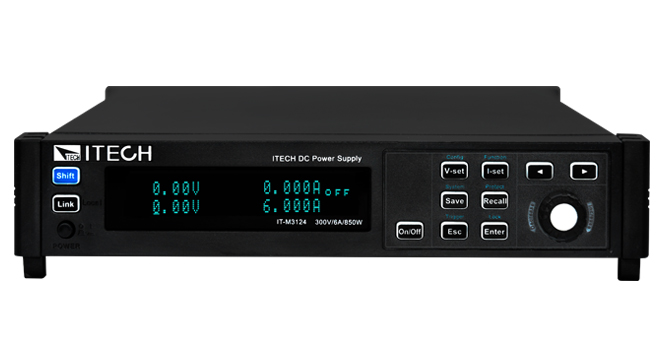

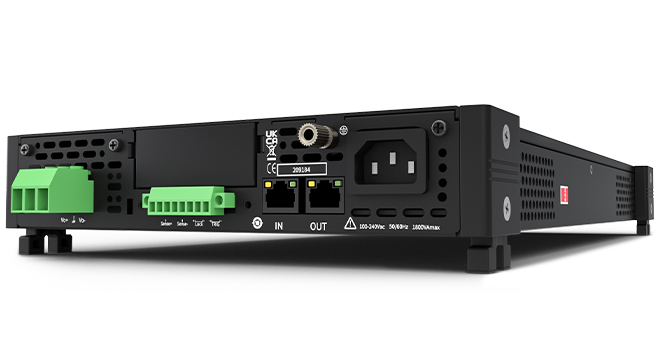

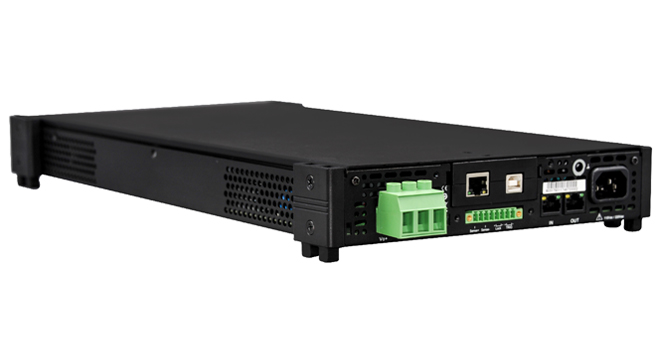

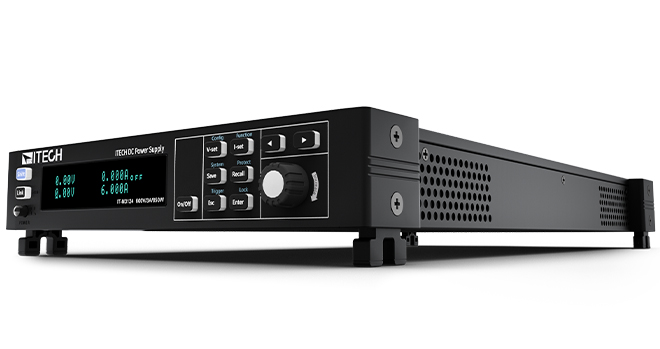

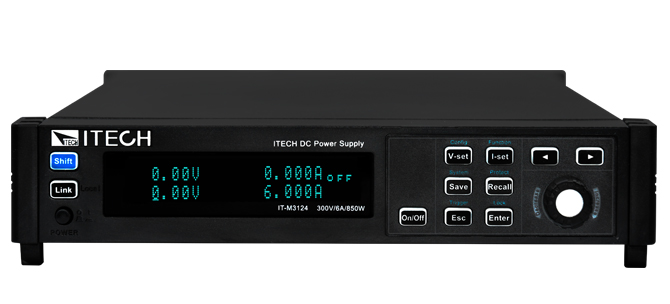

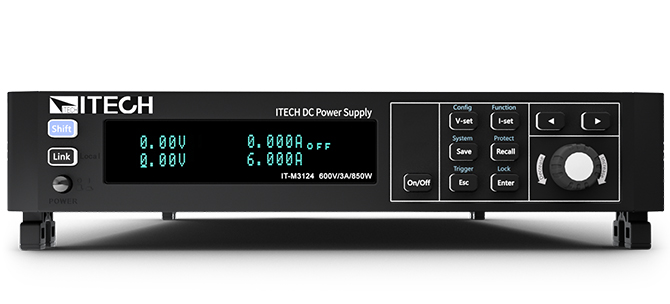

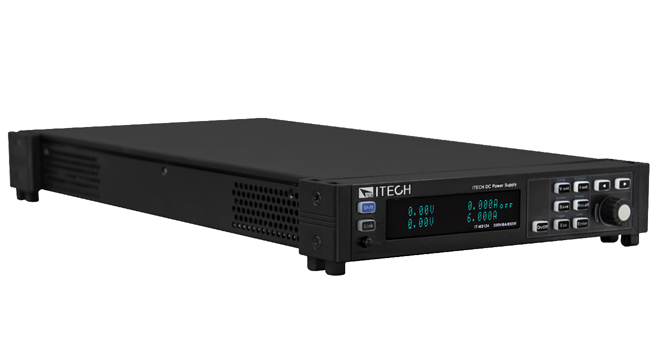

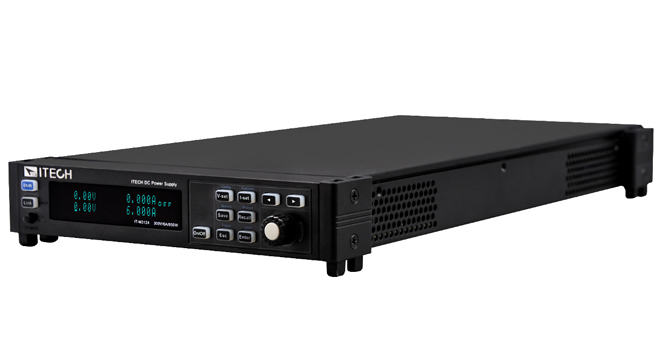

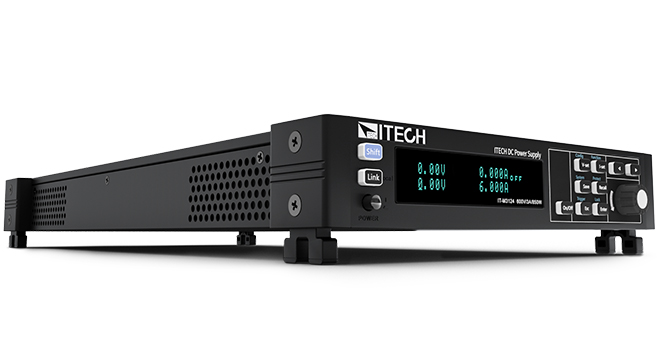

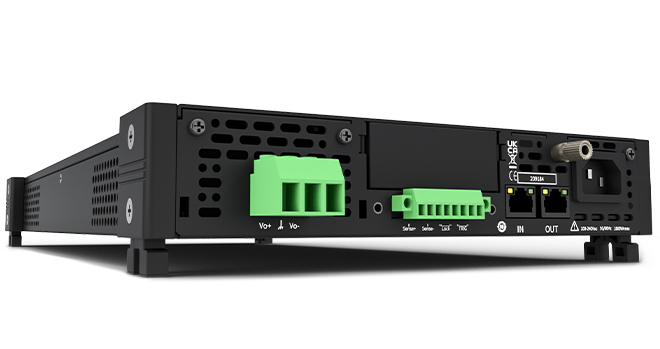

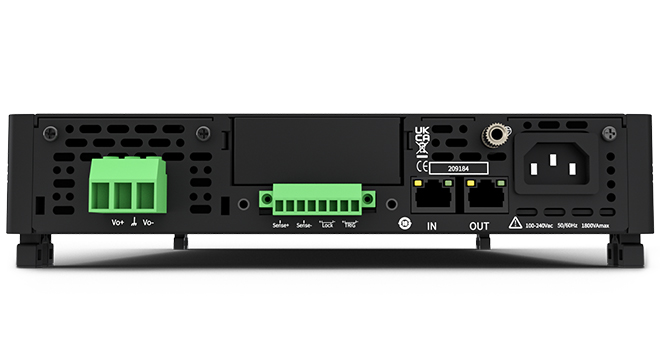

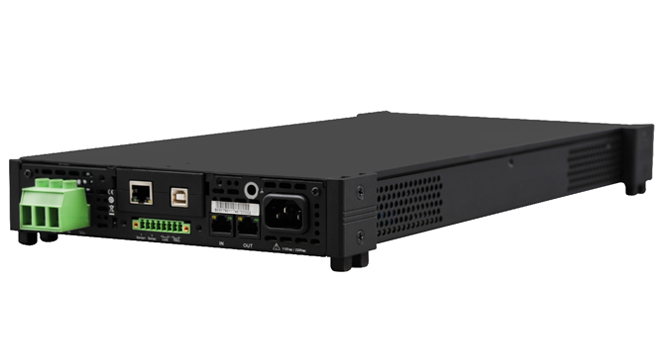

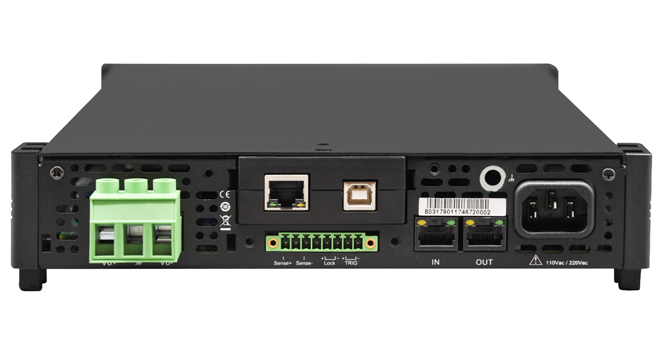

IT-M3100 Ultra-compact Wide Range DC Power Supply

IT-M3100 series breaks through the traditional tech limits, in the ultra compact size of only 1U Half-Rack, the unit can not only output high power, but also has high performance and versatility. It supports the master-slave parallel mode. The full range of models support multiple stacking and parallel connection by handily designing "leg" plug-in. Fit with rack mount kit to achieve the perfect use.

IT-M3100 series consists of 12 models, providing 6 voltages grades, and can be combined to achieve a variety of output power. It has a flexible modular architecture, independent multi-channel design, and supports synchronous operation. Users can configure each channel according to the test requirements of DUT, up to max. 16*16 channels, to meet the needs of customized solutions. It has a wide range of application values and is suitable for a variety of applications such as research and development, design verification and automatic test systems intergration.

Find a product
Model
Voltage
Current
Power
Resolution
Accuracy
Interface
Size
IT-M3123
150V
12A
850W
10mV/1mA
≤0.03%+75mV/≤0.1%+20mA
Optional RS232/CAN/LAN/GPIB/USB/RS485/external analog
½ 1U 505*234*58(mm)
inquiry
IT-M3122
80V
22A
850W
1mV/1mA
≤0.03%+40mV/≤0.1%+30mA
Optional RS232/CAN/LAN/GPIB/USB/RS485/external analog
½ 1U 505*234*58(mm)
inquiry
IT-M3121
30V
70A
850W
1mV/10mA
≤0.03%+20mV/≤0.1%+70mA
Optional RS232/CAN/LAN/GPIB/USB/RS485/external analog
½ 1U 505*234*58(mm)
inquiry
IT-M3120
20V
100A
850W
1mV/10mA
≤0.03%+20mV/≤0.1%+100mA
Optional RS232/CAN/LAN/GPIB/USB/RS485/external analog
½ 1U 505*234*58(mm)
inquiry
IT-M3115
600V
3A
400W
10mV/1mA
≤0.03%+200mV/≤0.1%+10mA
Optional RS232/CAN/LAN/GPIB/USB/RS485/external analog
½ 1U 505*234*58(mm)
inquiry
IT-M3114
300V
6A
400W
10mV/1mA
≤0.03%+200mV/≤0.1%+20mA
Optional RS232/CAN/LAN/GPIB/USB/RS485/external analog
½ 1U 505*234*58(mm)
inquiry
IT-M3113
150V
12A
400W
10mV/1mA
≤0.03%+75mV/≤0.1%+20mA
Optional RS232/CAN/LAN/GPIB/USB/RS485/external analog
½ 1U 505*234*58(mm)
inquiry
IT-M3112
80V
22A
400W
1mV/1mA
≤0.03%+40mV/≤0.1%+30mA
Optional RS232/CAN/LAN/GPIB/USB/RS485/external analog
½ 1U 505*234*58(mm)
inquiry
IT-M3111
30V
70A
400W
1mV/10mA
≤0.03%+20mV/≤0.1%+70mA
Optional RS232/CAN/LAN/GPIB/USB/RS485/external analog
½ 1U 505*234*58(mm)
inquiry
IT-M3110
20V
100A
400W
1mV/10mA
≤0.03%+20mV/≤0.1%+100mA
Optional RS232/CAN/LAN/GPIB/USB/RS485/external analog
½ 1U 505*234*58(mm)
inquiry
IT-M3125
600V
3A
850W
10mV/1mA
≤0.03%+200mV/≤0.1%+10mA
Optional RS232/CAN/LAN/GPIB/USB/RS485/external analog
½ 1U 505*234*58(mm)
inquiry
IT-M3124
300V
6A
850W
10mV/1mA
≤0.03%+200mV/≤0.1%+20mA
Optional RS232/CAN/LAN/GPIB/USB/RS485/external analog
½ 1U 505*234*58(mm)
inquiry
Show all
* The above specifications are subject to change without prior notice.
Product Features

1U Half-Rack, Ultra-Compact Size
Adjustable rising/falling speed of output current, to meet various test applications
High speed test, up to 10 times per second
Up to 100 steps LIST operation, support output of various dynamic waveforms
Support CC/CV loop speed and priority setting
Parallel operation can be easily controlled by one unit
Independent control of multi- channels, one communication card can control up to 16 channels, max.256 channels
Support output of different timings of each channel, can synchronize or delay the output, and supports the output of different ratios of voltage
Support CANOPEN, LXI, SCPI and other communication protocols
Five optional cards, providing RS232, CAN, LAN, GPIB, USB_TMC, USB_VCP, RS485, external analog and IO communication interfaces
Support TRACE function, can draw voltage and current waveforms in real time ( Supported by program)
Battery charging test function
Software watchdog provides more reliable and safe automatic battery test solution
Various protection functions such as OVP, ±OCP, ±OPP, OTP, ensure secure testing
Provide self-locking function, when the device is self-locked, the device will not be able to output



Functions and Advantages

Ultra-compacted - Only 1/2 1U

IT-M3100 series power supply is only 1/2 1U. But its maximum output power is up to 850W. It has not only high power density, but also has high precision and resolution and reliable stability. The maximum output voltage is up to 600V and maximum output current is up to 100A. Since the output voltage and current are restricted by limited power, lower current can get higher voltage and lower voltage can get higher current. One unit can be used in various applications.


CC&CV Priority

IT-M3100 series keep the function of CC/CV priority. It can make the test easier especially for the applications like high speed power supply or no overshooting current. Users can get fast voltage rising time by CV priority mode. This is helpful in the high speed voltage test. Users can also choose CC priority mode to output no overshooting current. It's good for test DUT under CC working condition. This is used in various application field such as laser test, IC test, charge and discharge test, transient simulation of power supply in automotive electronics and so on.




Synchronism

IT-M3100 has the function of synchronism between multiple channels. There are 3 options On/Off、Track、Duplicate. The synchronism works for On/Off, Save/Recall, Priority mode, rising or falling of voltage and current value setting and function of Protect. And the voltage change can be proportional between different units.


Multi-channel independent control,maximum 256 channels

IT-M3100 Series is provided with independent multi-channel design. The channel sequence will be displayed when 16 units IT-M3100 combines to be a multi-channel power system. The user can control each unit independently by PC software when connecting the communication interface of one unit with PC. Each channel can be operated separately. IT-M3100 supports maximum 16*16 channels. One 37U rack case contains 64 channels. The user may test DUTs with different power ranges by parallel connection, making tests more flexible and device usage more efficient.




Modular design, flexible combination

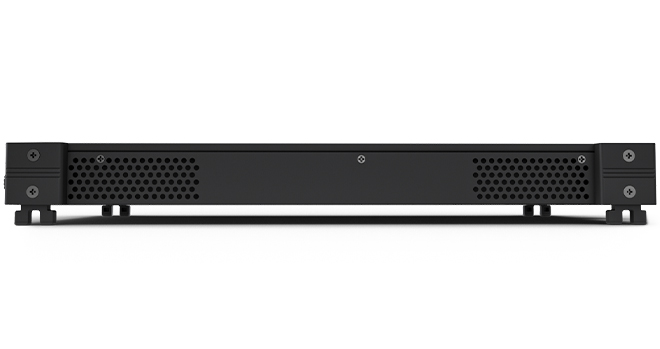

IT-M3100 breaks through the shackles of traditional product design, with a patented design and side ventilation design. The flexible modular design makes it simple for IT-M3100 to stack directly, no need to purchase any accessories. The open structure brings users with different free combinations, just like blocks stacking, simple and convenient.



Battery Charging function

IT-M3100 series can test batteries with its battery charging function. The users can set different parameters as turn off conditions: voltage, current, capacity and charging time. When any of the above parameters meet the set condition, it will shut off the test automatically. During the process, the users can observe the voltage, charging time and capacity. Additionally, IT-M3100 can be operated with software, which to achieve reliable auto-test solution.
