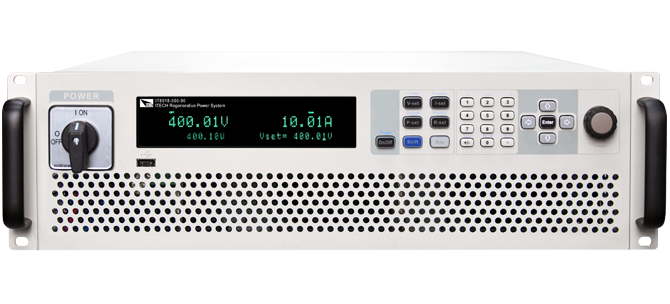

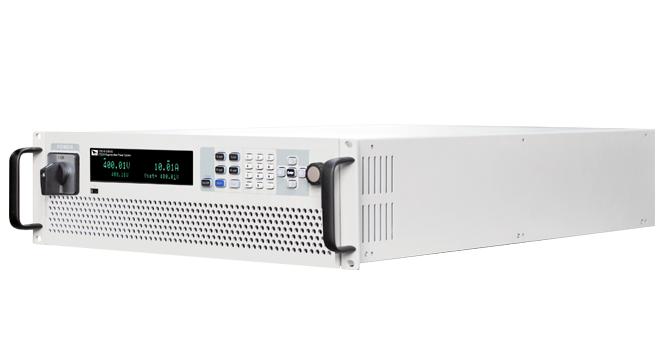

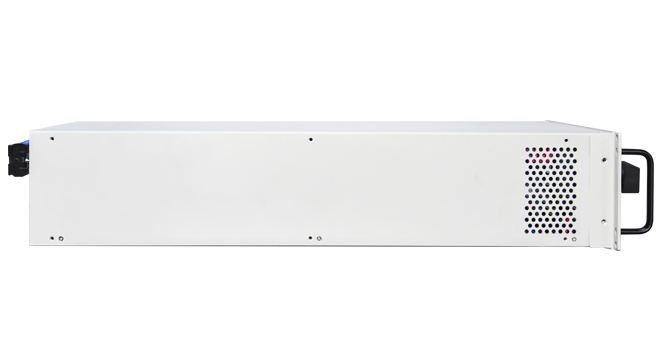

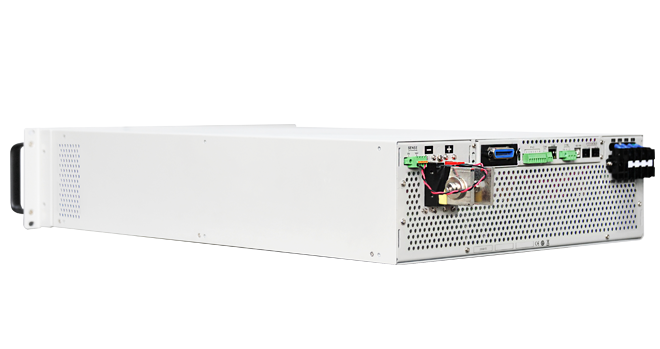

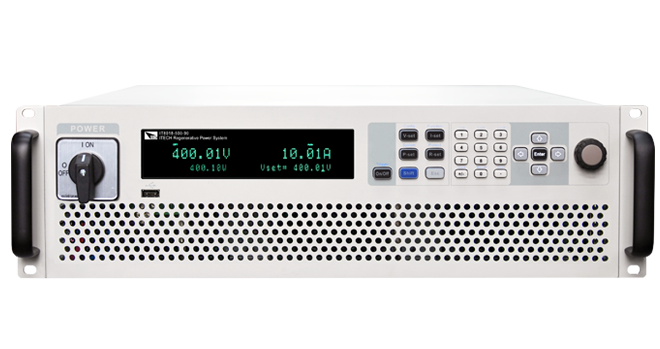

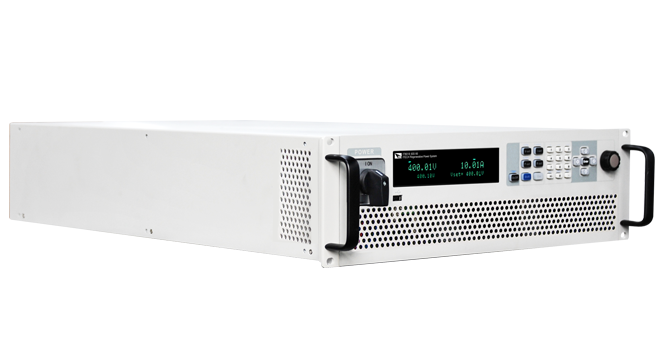

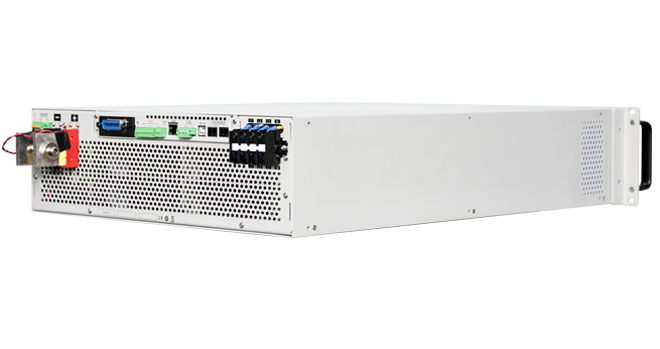

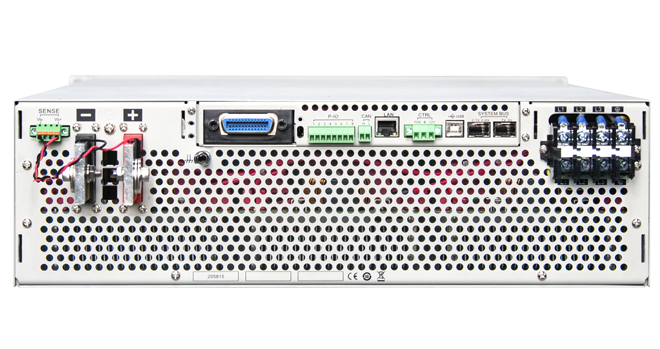

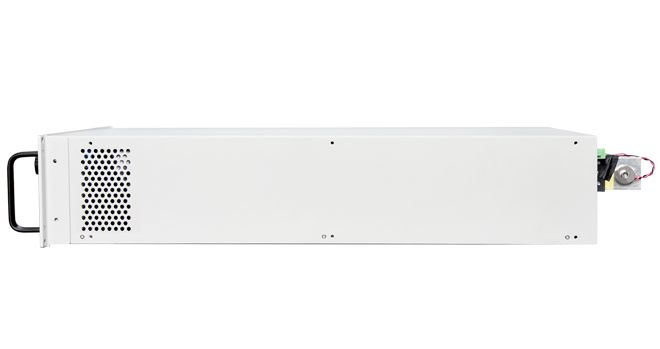

IT8000 Regenerative DC Electronic Load

IT8000 series is a family of high power regenerative electronic loads with compact size. The highly integrated capability enables the e-load to simulate various e-load characteristics, and return the consumed energy back to the grid cleanly, saving costs related to energy consumption and cooling, meanwhile eco-friendly. With modular high power density design, IT8000 provide up to 18kW in 3U space. The power is  expandable up to 2MW by master-slave parallelling and active current sharing. If you move into application of high power UPS, storage battery, PV battery, EV, energy storage system, ITECH can help you with IT8000 series high power regenerative electronic load.


Find a product
Model
Voltage
Current
Power
Resolution
Accuracy
Interface
Size
IT8030-80-900
80V
900A
30kW
0.001V/0.1A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
6U
inquiry
IT8015-80-450
80V
450A
15kW
0.001V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
3U
inquiry
IT8010-80-300
80V
300A
10kW
0.001V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
3U
inquiry
IT8005-80-150
80V
150A
5kW
0.001V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
3U
inquiry
IT8126-300-1575
300V
1575A
126kW
0.01V/0.1A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT8108-300-1350
300V
1350A
108kW
0.01V/0.1A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT8090-300-1125
300V
1125A
90kW
0.01V/0.1A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT8072-300-900
300V
900A
72kW
0.01V/0.1A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
15U
inquiry
IT8054-300-675
300V
675A
54kW
0.01V/0.1A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
15U
inquiry
IT8036-300-450
300V
450A
36kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
6U
inquiry
IT8018-300-225
300V
225A
18kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
3U
inquiry
IT8012-300-150
300V
150A
12kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
3U
inquiry
IT8006-300-75
300V
75A
6kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
3U
inquiry
IT8120-80-2040
80V
2040A
120kW
0.001V/0.1A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT8105-80-2040
80V
2040A
105kW
0.001V/0.1A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT8090-80-2040
80V
2040A
90kW
0.001V/0.1A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT8075-80-2040
80V
2040A
75kW
0.001V/0.1A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT8060-80-1800
80V
1800A
60kW
0.001V/0.1A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
15U
inquiry
IT8045-80-1350
80V
1350A
45kW
0.001V/0.1A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
15U
inquiry
IT8018-800-75
800V
75A
18kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
3U
inquiry
IT8012-800-50
800V
50A
12kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
3U
inquiry
IT8006-800-25
800V
25A
6kW
0.01V/0.001A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
3U
inquiry
IT8144-500-960
500V
960A
144kW
0.01V/0.1A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT8126-500-840
500V
840A
126kW
0.01V/0.1A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT8108-500-720
500V
720A
108kW
0.01V/0.1A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT8090-500-600
500V
600A
90kW
0.01V/0.1A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT8072-500-480
500V
480A
72kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
15U
inquiry
IT8054-500-360
500V
360A
54kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
15U
inquiry
IT8036-500-240
500V
240A
36kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
6U
inquiry
IT8018-500-120
500V
120A
18kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
3U
inquiry
IT8012-500-80
500V
80A
12kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
3U
inquiry
IT8006-500-40
500V
40A
6kW
0.01V/0.001A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
3U
inquiry
IT8144-300-1800
300V
1800A
144kW
0.01V/0.1A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT8144-1500-320
1500V
320A
144kW
0.1V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT8126-1500-280
1500V
280A
126kW
0.1V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT8108-1500-240
1500V
240A
108kW
0.1V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT8090-1500-200
1500V
200A
90kW
0.1V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT8072-1500-160
1500V
160A
72kW
0.1V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
15U
inquiry
IT8054-1500-120
1500V
120A
54kW
0.1V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
15U
inquiry
IT8036-1500-80
1500V
80A
36kW
0.1V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
6U
inquiry
IT8018-1500-40
1500V
40A
18kW
0.1V/0.001A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
3U
inquiry
IT8144-800-600
800V
600A
144kW
0.01V/0.1A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT8126-800-525
800V
525A
126kW
0.01V/0.1A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT8108-800-450
800V
450A
108kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT8090-800-375
800V
375A
90kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT8072-800-300
800V
300A
72kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
15U
inquiry
IT8054-800-225
800V
225A
54kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
15U
inquiry
IT8036-800-150
800V
150A
36kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
6U
inquiry
IT8144-2250-200
2250V
200A
144kW
0.1V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT8126-2250-175
2250V
175A
126kW
0.1V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT8108-2250-150
2250V
150A
108kW
0.1V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT8090-2250-125
2250V
125A
90kW
0.1V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT8072-2250-100
2250V
100A
72kW
0.1V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
15U
inquiry
IT8054-2250-75
2250V
75A
54kW
0.1V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
15U
inquiry
IT8036-2250-50
2250V
50A
36kW
0.1V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
6U
inquiry
IT8018-2250-25
2250V
25A
18kW
0.1V/0.001A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
3U
inquiry
Show all
* The above specifications are subject to change without prior notice.
Product Features

Features
Recover DC energy to local grid with efficiency up to 95%
♦ High power density up to 18kW in compact 3U rack space, expandable up to 2MW by paralleling
Input voltage up to 2250V
Current output range: 0 to 2040A (single cabinet), 0 to 8000A (parallel connection between cabinets)

Adopts third-generation SiC technology

l♦ Built-in waveform generator, support generating arbitrary waveforms
♦ Power accumulation function
♦ Battery test function, auto-test function, short circuit test function
♦ With pre-charging function, prevent DC loading current overshoot
♦ Full protection: OVP/OCP/OPP/OTP/UVP, Vsense anti-reverse connection protection, and voltage transient drop protection
♦ Built-in standard USB/CAN/LAN/digital IO interface, and optional
♦ GPIB/Analog&RS232 interfaces
♦ Support SCPI protocol, LabVIEW
♦ Operating mode:CC/CV/CP/CR/CC+CV/CV+CR/CR+CC/CC+CV+CP+CR
*The regenerated power is for local grid purpose, not for public grid purpose



Application


Functions and Advantages

Power regenerative efficiency up to 95%

High energy regenerative efficiency.The IT8000series has a unique energy regenerative function that can regenerate electrical energy and then directly use it in the plant instead of consuming it in the form of heat. Its conversion efficiency can up to 95%, which not only will greatly reduce the user's electricity cost, but also avoid the use of air conditioning or expensive cooling systems.



High power density

Conventional electronic loads are not only with high energy consumption, but also with very large size and weight. Energy consumption electronic load with 30KW load is at least 24U, it is difficult to transport and the cost is higher. IT8000 series regenerative DC electronic load adopts high power density design of 18kW in only 3U high. Compared to conventional electronic loads, the size for IT8000 series is decreased by 80% under the same output power.



Power accumulation function

IT8000 series regenerative DC electronic load uses the power electronic transformation technology on the premise of completing test power experiment to make output energy of measured power supply regenerative recycled and reused. Through the inside fast sampling of voltage and current, the regenerative power value can be observed on the front panel of IT8000 series, including voltage, frequency and power of each phase, as well as total power, total current regenerative and total historical regenerative power, which makes the energy saving effect much easier. Re-open after power failure, IT8000 series will continue to accumulate the regenerative power value based on the last power off value.



List function

IT8000 series regenerative DC electronic load provides list mode, it can complete the complex arbitrary current change mode accurately and fast, and can synchronize with internal or external signals to complete multi-level loading precision test, which greatly save cost for customers. By editing the step value, pulse width and the slope of each step, IT8000 can generate a variety of complex sequences and help users to complete various loading waveforms test. In the CC mode, IT8000 series can set rising and falling speed.




Battery test function

IT8000 series regenerative DC electronic load simulate battery discharge test under CC mode, and support settable discharge cut-off conditions, such as cut-off voltage, cut-off capacity and cut-off time. When any of the three conditions are met, the discharge test will be stopped. Moreover, the battery voltage, discharge time and the discharged capacity can be observed during the test, which reflects the reliability of the battery and its remaining life.



Patented parallel technology

Advantage:
IT8000 has adopted ITECH parallel technology
All the function and performance will be the same as standalone unit
No need to calibrate after paralleling
Fiber transmission, good for anti-interference
Digital paralleling, fully insulated, good for protecting DUT



Full protection

IT8000 series regenerative DC electronic load supports automatic detection the grid state . When grid connection is suddenly disconnected or power down, IT8000 will be turned off. IT8000 series can achieve reliable on-grid function and anti-islanding protection function. IT8000 supports monitoring on DC input voltage and frequency, and supports OCP, OVP, OTP, OPP function.

Options & Accessories
  • AC power cord (accessory)
    AC power cord (accessory)
  • USB straight wire (accessory)
    Used for USB port communicatio...
  • IT-E168/169(Optional)
    Parallel optical fiber kit Sin...
  • IT-E165A-250/400/500(Optional)...
    Anti-reverse connection module...
  • IT-E167(Optional)
    RS232/Analog communication car...
  • IT-E166(Optional)
    GPIB
  • IT cabinet(Optional)
    IT cabinet 15U/27U/37U
  • AC power cord(Optional)
    AC power cord, 5m
  • IT-E33620-OO(Optional)
    360A/2m/Round terminal, a pair...
  • IT-E32420-OO(Optional)
    240A/2m/Round terminal, a pair...
  • IT-E32410-OO(Optional)
    240A/1m/Round terminal, a pair...
  • IT-E31220-OO(Optional)
    120A/2m/Round terminal, a pair...
  • IT-E30615-OO(Optional)
    60A/1.5m/Round terminal, a pai...
  • IT-E30320-YY(Optional)
    30A/2m/Y terminal, a pair of r...
  • IT-E30312-YY(Optional)
    30A/1.2m/Y terminal, a pair of...
  • IT-E9005(Optional)
    ITECH Warranty up to 5 years
  • IT-E9003(Optional)
    ITECH Warranty up to 3 years
Database
Related Products
Relevant Solutions
Related technical articles
User's Manual
Product catalog
***Item is required. Please submit the information after completion.
You have submitted it successfully, We will review it as soon as possible.

No Records

More information Product / Solutions
